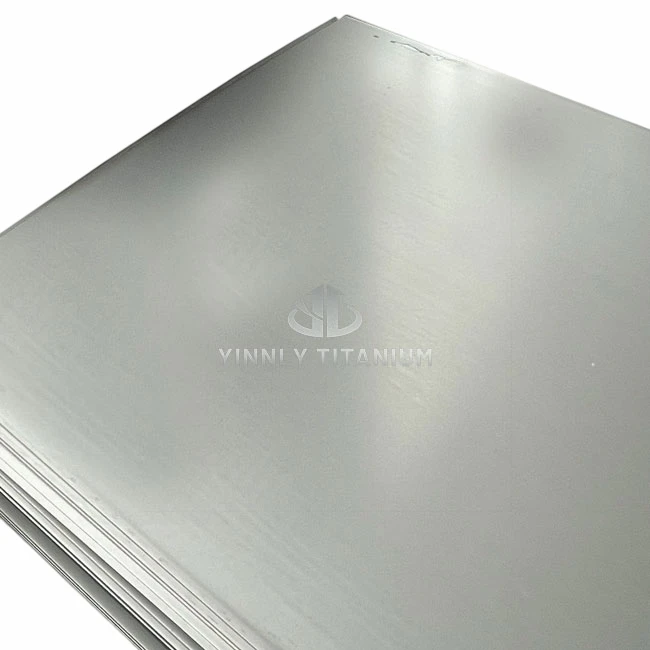

Grade 12 Titanium Plate

Baoji Yinnly Titanium Co., Ltd. is one of the most reliable manufacturers and suppliers of grade 12 titanium plate in China, featured by high quality customized products. If you're going to wholesale durable grade 12 titanium plate made in China, welcome to get free sample from our factory. For price consultation, contact us.

Grade 12 titanium plate (Ti - 0.3Mo - 0.8Ni, UNS R53400, domestic TA10, EU 3.7105) is an α -type low alloy titanium plate. By adding Mo/Ni, its resistance to crevices corrosion and reducing acid corrosion is significantly enhanced, and its performance lies between that of pure titanium and palladium alloy plate with titanium(Gr7). It is a cost-effective corrosion-resistant material choice for harsh environments such as chemical engineering and Marine applications.

Core advantage

Corrosion resistance upgrade: Mo/Ni inhibits crevice corrosion and performs exceptionally well in high-temperature chlorides and dilute sulfuric acid/hydrochloric acid. It can replace part of Gr7 at a lower cost.

Strength-plastic balance: The strength is approximately 60% - 80% higher than that of Gr2, while still maintaining good cold formability and weldability.

Economic corrosion resistance: It offers better cost performance than palladium alloy titanium and is the preferred solution for harsh environments.

Key points of processing

It has good cold working formability. After large deformation, vacuum annealing at 700-750℃ is recommended for stress relief.

Argon gas is used for welding protection to prevent contamination, and the strength of the weld seam is close to that of the base material. Special cutting tools for temperature control to prevent sticking.

• Chemical engineering/Pharmaceuticals: Heat exchangers, reactor linings, acid washing tanks, chlor-alkali equipment, resistant to reducing acids and chloride corrosion.
• Marine/seawater desalination: Condensers, seawater pipelines, structural components of offshore platforms, resistant to Marine biological fouling and salt spray corrosion.
• Electricity/Environmental Protection: FGD (Flue Gas Desulfurization) systems, nuclear power plant condenser tubes, suitable for high-temperature corrosive media.
• Others: Anti-corrosion pipes for oil and gas extraction, medical implants (in compliance with ASTM F67), high-end corrosion-resistant containers.
