Baoji Yinnly Titanium Co., Ltd. is one of the most reliable manufacturers and suppliers of grade 2 titanium plate in China, featured by high quality customized products. If you're going to wholesale durable grade 2 titanium plate made in China, welcome to get free sample from our factory. For price consultation, contact us.
Product Introduction

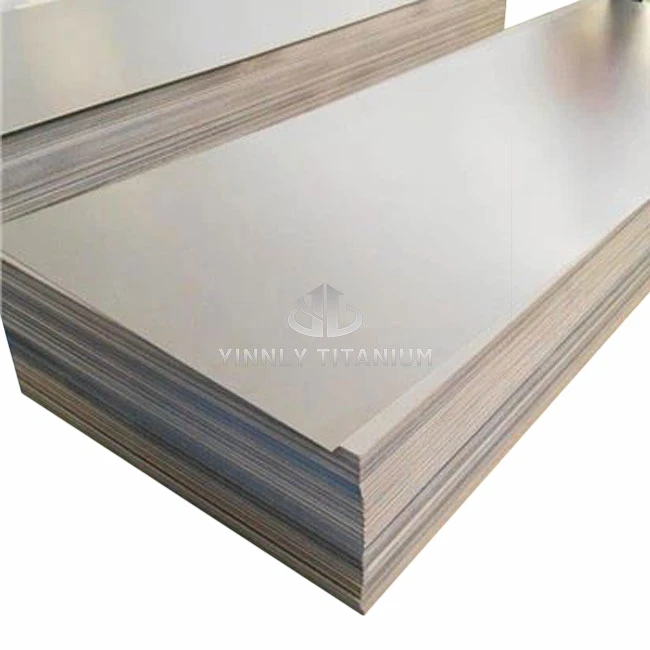

Grade 2 titanium plate is the "general main grade" in commercial pure titanium(CP Ti) (UNS R50400, corresponding to domestic TA2 and EU 3.7035), with a titanium content of ≥99.2%, and intergranular elements such as oxygen and iron slightly higher than Gr1. It achieves the best balance among strength, formability, corrosion resistance and cost It is the most widely used pure titanium plate in the industrial and medical fields.
Core Mechanical and Corrosion Properties of Grade 2 Titanium Plate (Annealed)
|
Property |
Specification / Typical Value |
Unit |
Remarks |
|
Density |
4.51 |
g/cm³ |
About 60% of steel, excellent lightweight performance |
|
Ultimate Tensile Strength |
Min: 345 (Typical: 345-515) |
MPa |
Balances moderate strength and formability |
|
0.2% Offset Yield Strength |
Min: 275 (Typical: 275-450) |
MPa |
Meets most structural load requirements |
|
Elongation (in 2 in. or 50 mm gauge length) |
Min: 20 (Typical: 20-30) |
% |
Good cold forming and deep drawing capacity |
|
Hardness (HV) |
Typical: 145-200 |
HV |
Slightly harder than Grade 1, better wear resistance |
|
Melting Point |
Approx. 1670 |
℃ |
Stable at high temperatures |
|
Corrosion Resistance |
Form a dense TiO₂ passive film |
- |
Corrosion rate <0.001 mm/year in seawater; superior to 316 stainless steel in chloride environments |
|
Modulus of Elasticity |
Typical: 105-110 |
GPa |
Consistent with other CP titanium grades |
Our Product
Why Choose Us?
Over 15 Years Experience
Diverse Inventory
Certified Excellence
Corrosion Resistance
Quality Assurance
Exceptional Strength
