Product Introduction

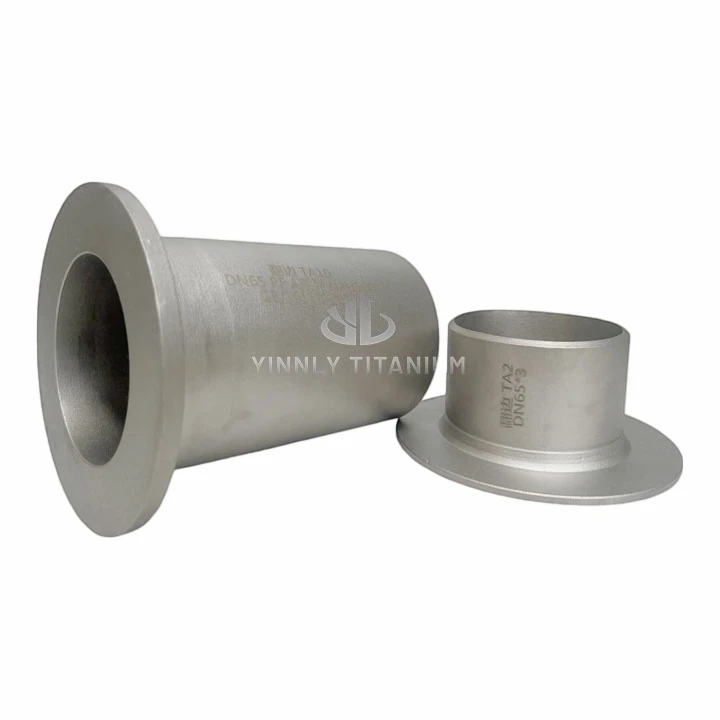

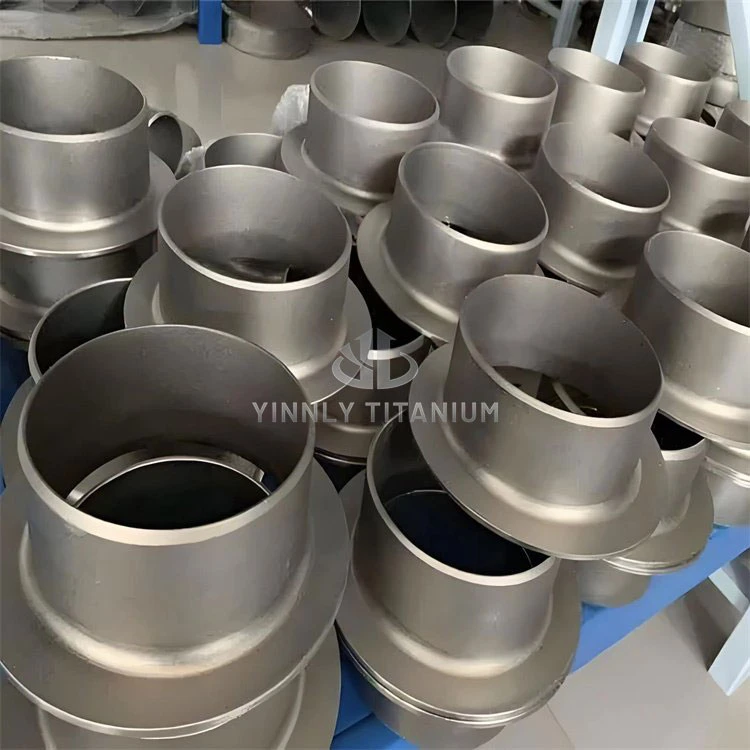

Titanium alloy stub end, also known as titanium lap joint stub end or titanium butt-welding ring, is a high-performance pipe fitting designed for flanged connections in piping systems. It features a short tubular body with one end flared (for flange mating) and the other end welded to the pipe, always used in conjunction with a lap joint flange (carbon steel or stainless steel) to reduce costs while ensuring the titanium wetted surface contacts corrosive media.
Material & Grades
Made from commercially pure titanium (CP Ti) and titanium alloys per ASTM B363, common grades include:
- Grade 2 (UNS R50400): CP Ti, excellent corrosion resistance, good strength and ductility, most widely used.
- Grade 5 (Ti-6Al-4V, UNS R56400): High strength, good heat resistance, for heavy-duty applications.
- Grade 7 (Ti-0.2Pd, UNS R52400): Superior corrosion resistance (especially in reducing acids), ideal for harsh chemical environments.
- Grade 12 (Ti-0.3Mo-0.8Ni): Good resistance to crevice corrosion in seawater and brines.
Standards & Dimensions
- Standards: ANSI/ASME B16.9, MSS-SP-43, ASTM B363 (material), ASTM B861 (seamless, ≤NPS 6), ASTM B265 (welded, >NPS 6).
- Patterns: Short pattern (ASME B16.9) and long pattern (ANSI).
Definition & Application
A Titanium Alloy Stub End is a short flange section welded to the end of a pipe, facilitating the assembly and maintenance of piping systems. It is usually mated with stainless steel or carbon steel flanges: the part of the piping in contact with the medium is made of titanium material, while the stainless steel flange only serves a fastening function without contacting the medium, thus significantly reducing costs.
