Product Introduction

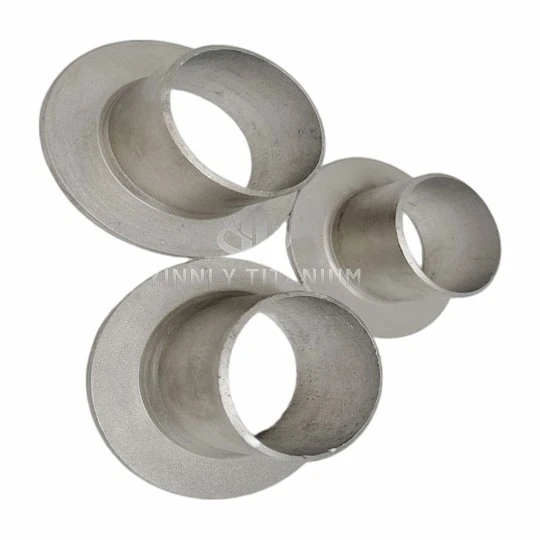

A titanium pipe stub end (also called titanium lap joint stub end or titanium butt-welding ring) is a specialized corrosion-resistant pipe fitting designed to work with lap joint flanges in piping systems. Titanium pipe stub end has a short cylindrical barrel and a flared lap at one end; the barrel is butt-welded to the titanium pipe, while the lap fits inside a lap joint flange, enabling bolted, leak-tight connections that are easy to disassemble without re-welding.
Material & Standards
- Grades: Commercially pure titanium (Grade 1/2/3) and titanium alloys (Grade 5/7/9/12), with Grade 2 Titanium Pipe Stub End(UNS R50400) being the most common.
- Specifications: Manufactured per ASTM B363; dimensions conform to ASME B16.9 (short/long pattern) and MSS SP 43 (Type A/B/C).
- Forms: Seamless (NPS ≤6, ASTM B861) or welded (NPS ＞6, ASTM B265).
Key Features
- Superior Corrosion Resistance: Resists acids, alkalis, salts, and seawater; ideal for harsh chemical and marine environments.
- Lightweight & High Strength: ~60% the density of stainless steel yet maintains high mechanical strength.
- Easy Maintenance: The stub-end-and-lap-joint-flange design allows repeated assembly/disassembly for inspection or repairs.
- Cost-Effective: The titanium wetted part contacts the medium, while cheaper carbon steel/stainless steel flanges provide clamping, reducing overall cost.
- High-Temperature Stability: Retains strength and stability at elevated temperatures.
Applications
- Chemical processing (oxidizing acids, corrosive media).
- Marine, offshore, and seawater systems.
- Pulp and paper, desalination, and high purity fluid systems.
- Heat exchangers, pressure vessels, and piping requiring frequent maintenance.
