Baoji Yinnly Titanium Co., Ltd. is one of the most reliable manufacturers and suppliers of grade 2 titanium stub end in China, featured by high quality customized products. If you're going to wholesale durable grade 2 titanium stub end made in China, welcome to get free sample from our factory. For price consultation, contact us.
Product Introduction

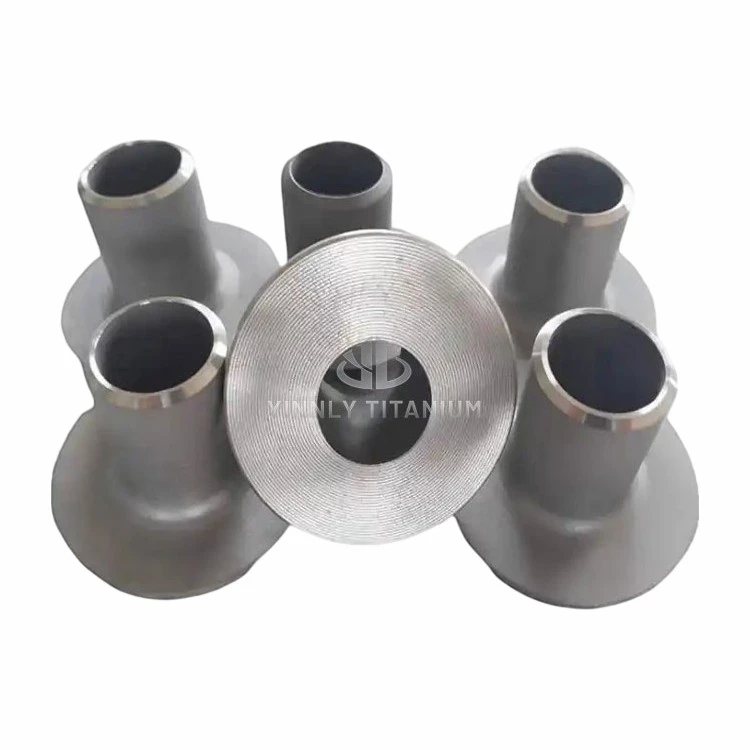

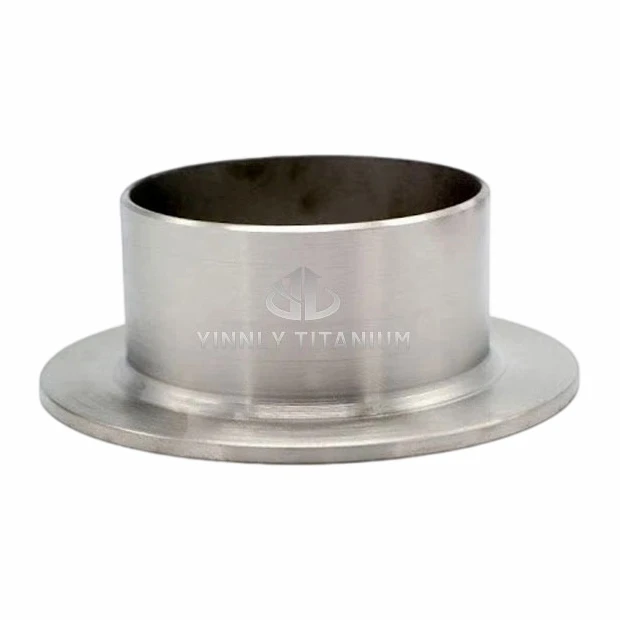

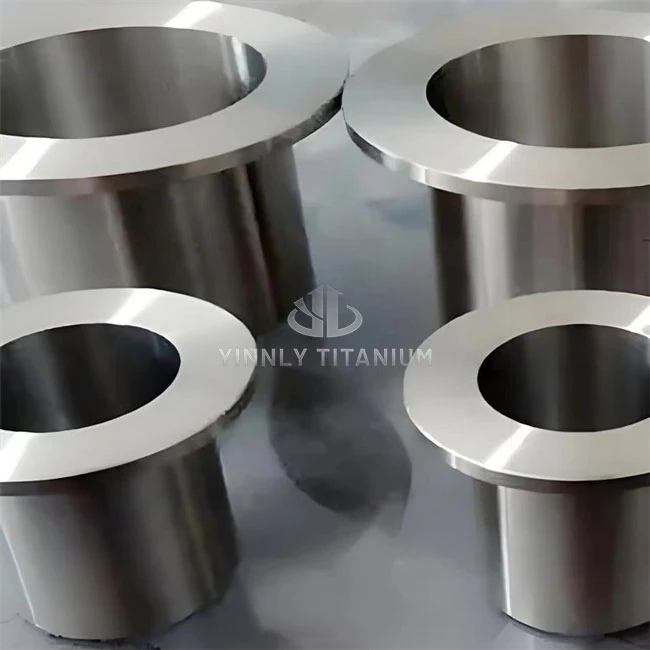

Grade 2 Titanium Stub End is a widely used pure titanium pipe fitting with excellent corrosion resistance and outstanding ductility. It features lightweight, high strength and superior resistance to oxidation, perfectly suitable for connecting flanges in piping systems. Available in standard sizes and custom dimensions, it serves chemical processing, marine engineering, desalination and industrial pipeline projects.
Key Details
|
Material |
ASTM B381 Gr.2 CP Titanium |
|
Standard |
ASME B16.9, MSS SP 43 |
|
Types |
Type A, Type B, Type C |
|
Connection |
Welded to titanium pipe, used with lap joint flange |
|
Wall Thickness |
SCH10S, SCH40S, SCH80S |
|
Size Range |
1/2" ~ 8" (DN15 ~ DN200), custom larger sizes available |
|
Pressure Class |
Class 150, Class 300, Class 600 |
Properties & Applications
- Excellent corrosion resistance to seawater, brine, chlorides, and mild acids
- Good weldability and formability
- Lightweight, high strength-to-weight ratio
- Non-magnetic and non-toxic
- ti grade 2 ASME B16.9 stub end widely used in chemical, petrochemical, desalination, marine, and food-grade piping systems
Surface & End Finish
- Pickled and passivated
- Flanged face machined for sealing
- Beveled ends for butt welding
