Grade 2 Titanium Elbow

Baoji Yinnly Titanium Co., Ltd. is one of the most reliable manufacturers and suppliers of grade 2 titanium elbow in China, featured by high quality customized products. If you're going to wholesale durable grade 2 titanium elbow made in China, welcome to get free sample from our factory. For price consultation, contact us.

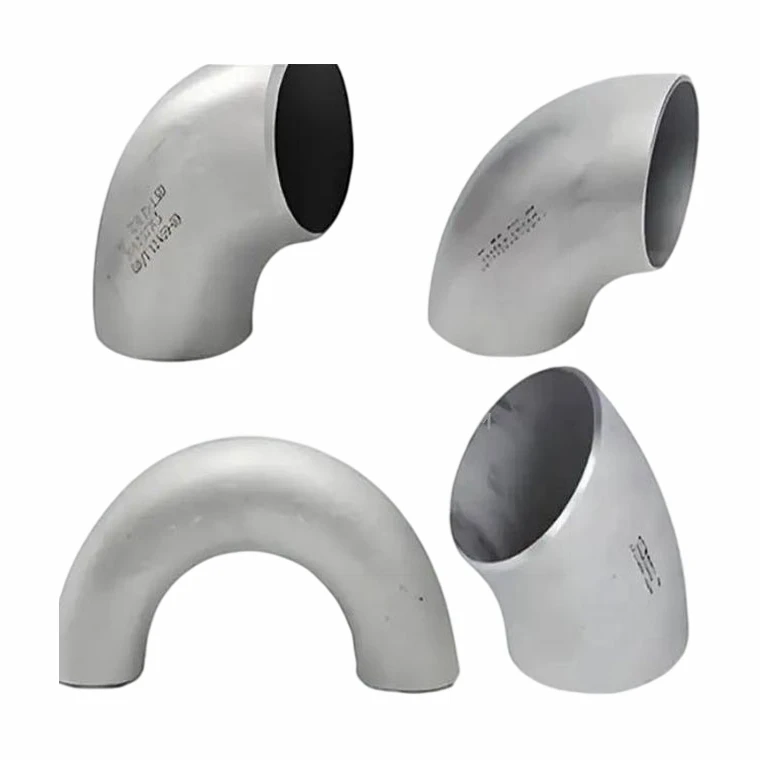

Grade 2 titanium elbow are key pipe fittings made from commercially pure titanium (Grade 2), designed primarily to change the direction of fluid flow in piping systems. Common angles include 45°, 90°, and 180°, with custom angles also available.

Titanium gr2 elbow is a representative commercially pure titanium grade, with a titanium content exceeding 99%. It offers excellent all-around performance:

• Corrosion resistance: Provides strong resistance to most organic acids, inorganic acids (such as dilute sulfuric acid), salt solutions, seawater, and other media. In harsh corrosive environments, it significantly outperforms carbon steel and most stainless steel grades.
• Mechanical properties: At room temperature, tensile strength reaches at least 345 MPa, yield strength is no less than 275 MPa, elongation after fracture is at least 20%, and reduction of area is at least 30%. The material offers good formability, machinability, and weldability, allowing it to be processed into elbows of various specifications through multiple manufacturing steps.
• Lightweight: With a density of approximately 4.51 g/cm³, Grade 2 titanium is only about 60% as dense as steel, effectively reducing the overall weight of piping systems and helping lower installation and operating costs.

The production and inspection of titanium elbows are strictly performed in accordance with the following international and national standards:

● International:

ASTM B363 (Titanium and Titanium Alloy Wrought Pipe Fittings),

ASME B16.9 (Factory-Made Wrought Buttwelding Fittings)

● European:

EN 10333 (Titanium and titanium alloys - Technical delivery conditions for wrought products)

Dimensions in accordance with EN 10253 series

● Chinese:

GB/T 27684 (Titanium and titanium alloy butt-welding pipe fittings),

Dimensions referring to GB/T 12459

These standards define the dimensional tolerances, material composition, mechanical property requirements, manufacturing processes, and inspection methods for Grade 2 titanium elbow.

Thanks to their excellent corrosion resistance, light weight, and high strength, Grade 2 titanium elbow are widely used across several high-end industries:

• Petrochemical industry: Used in pipelines that transport corrosive media such as acids, alkalis, and salts; suitable for chemical reactors, transfer lines, and related equipment.
• Marine engineering: Applied on offshore oil platforms, subsea pipelines, and shipboard piping systems, offering strong resistance to seawater corrosion and marine atmospheric corrosion.
• Aerospace industry: Used in hydraulic systems, fuel supply lines, and gas transmission pipes on aircraft and spacecraft, helping reduce structural weight while maintaining high reliability.
