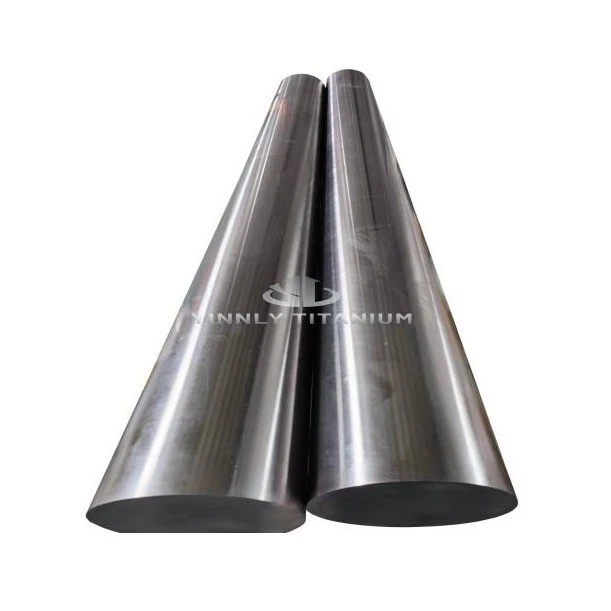

Grade 1 Titanium Round Bar

Element

Content (Mass Fraction, %)

Remarks

Titanium (Ti)

Balance

The base element, and its content is no less than 99.5% in general

Iron (Fe)

≤0.20

Main impurity element, whose content needs to be strictly controlled to ensure the plasticity of the titanium rod

Oxygen (O)

≤0.18

Affects the toughness of the titanium rod; excessive content will reduce its ductility

Carbon (C)

≤0.08

Too much carbon will damage the welding performance of the titanium rod

Nitrogen (N)

≤0.03

Easy to cause brittleness of titanium materials, so the content is strictly restricted

Hydrogen (H)

≤0.015

The key element to prevent hydrogen embrittlement of titanium rods, and ultra-low content ensures the safety of use

Other Elements (Single)

≤0.10

Refers to other unlisted trace impurity elements

Item

Details

Name

Grade 1 Titanium Round Bar

Shape

Round bar (round bar as standard supply)

Diameter Range

7mm-300mm

Diameter Tolerance

Small diameter (<10mm): ±10%; Large diameter (>10mm): ±5%(Tolerance for diameters above 25.4mm is relaxed with size increase, refer to corresponding standards for details)

Length Range

Random length: 100 - 6000mm; Custom fixed length available(Allowable deviation for fixed length: +20mm)

Surface Finish

Turned surface, ground surface, polished surface(No cracks, pitting, or oil stains)

Processing Condition

Hot-worked (R), Cold-worked (Y), Annealed (M)(Annealed condition as standard supply)
