Product Introduction

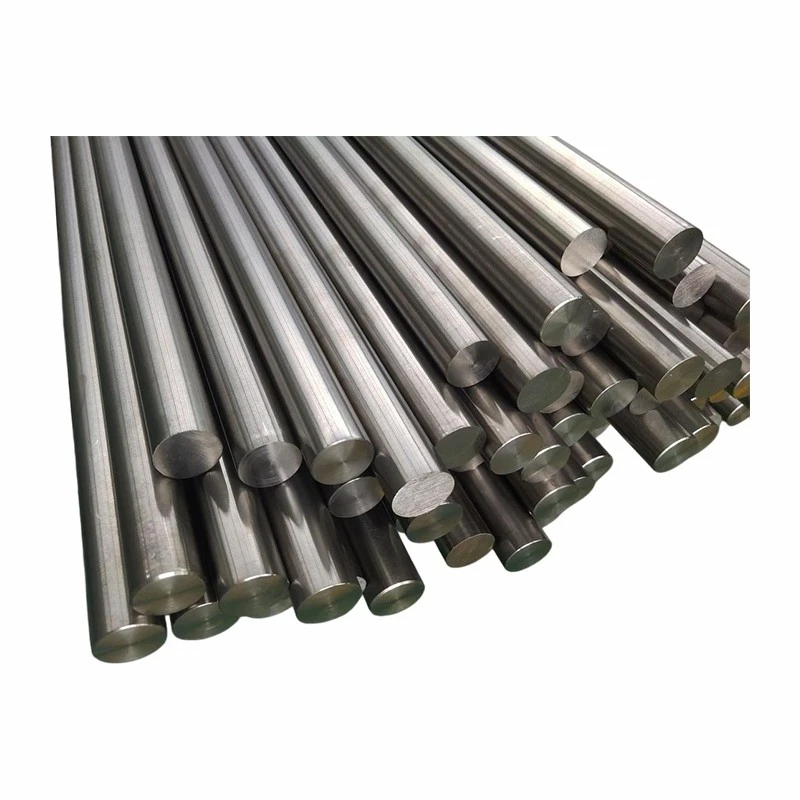

Grade 5 Titanium Round Bar (also known as Ti-6Al-4V or ti 6al 4v bar or 6-4 titanium alloys) are the most widely used α-β titanium alloys worldwide. Their core components are 6% aluminum and 4% vanadium, with the rest being titanium matrix. It combines the excellent corrosion resistance of pure titanium with the ultra-high strength, fatigue resistance and heat resistance after alloy strengthening. Its structural performance far exceeds that of industrial pure titanium grades such as Gr1 and Gr2, making it the core material for the "high strength + lightweight" demand in high-end equipment manufacturing. With its outstanding comprehensive performance, Grade 5 titanium round bar
have become the preferred choice for key components in fields such as aerospace, medical care, and industrial manufacturing, providing stable support for scenarios with strict requirements for reliability and durability.
Chemical composition of Grade 5 Titanium Round Bar
|
Element |
Mass Fraction (%) |
Remarks |
|
Titanium (Ti) |
Balance |
Base metal |
|
Aluminum (Al) |
5.50 - 6.75 |
Primary strengthening alloying element |
|
Vanadium (V) |
3.50 - 4.50 |
Improves toughness and processability |
|
Iron (Fe) |
≤0.30 |
Maximum impurity limit |
|
Oxygen (O) |
≤0.20 |
Critical purity control index |
|
Carbon (C) |
≤0.08 |
Maximum impurity limit |
|
Nitrogen (N) |
≤0.05 |
Maximum impurity limit |
|
Hydrogen (H) |
≤0.015 |
Strictly controlled to avoid hydrogen embrittlement |
Mechanical Properties of Grade 5 Titanium Bar (Annealed Condition)
|
Property |
Value |
Test Standard Reference |
|
Tensile Strength |
≥860 MPa |
ASTM E8 / ISO 6892-1 |
|
Yield Strength (0.2% Offset) |
≥795 MPa |
ASTM E8 / ISO 6892-1 |
|
Elongation (δ5) |
≥10% |
ASTM E8 / ISO 6892-1 |
|
Brinell Hardness (HB) |
≥300 |
ASTM E10 / ISO 6506-1 |
|
Modulus of Elasticity |
110 GPa |
ASTM E111 / ISO 527-1 |
|
Density |
4.43 g/cm³ |
ASTM B958 / ISO 1183 |
|
Operating Temperature Range |
-250℃ to 550℃ |
- |
Product Specification
|
Diameter Range |
φ3mm - φ600mm (customizable for smaller/larger sizes) |
|
Length Range |
1000mm - 6000mm (fixed length, random length, or cut-to-size) |
|
Surface Finish |
Annealed, pickled, turned, ground, polished, or sandblasted |
|
Processing Condition |
Annealed (standard), solution-treated and aged (STA), cold-worked |
Customization Services
- Custom diameters, lengths, and surface treatments
- Precision machining (turning, milling, drilling, grinding) for finished components
- Custom tolerance control (h6 - h13) for high-precision applications
- Small-batch and bulk order support, flexible MOQ
- 3D printing of complex-shaped components

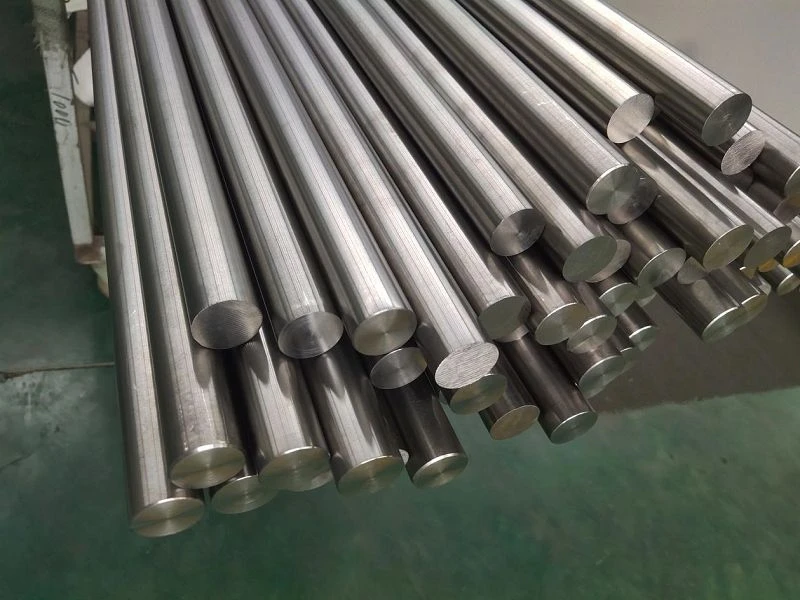

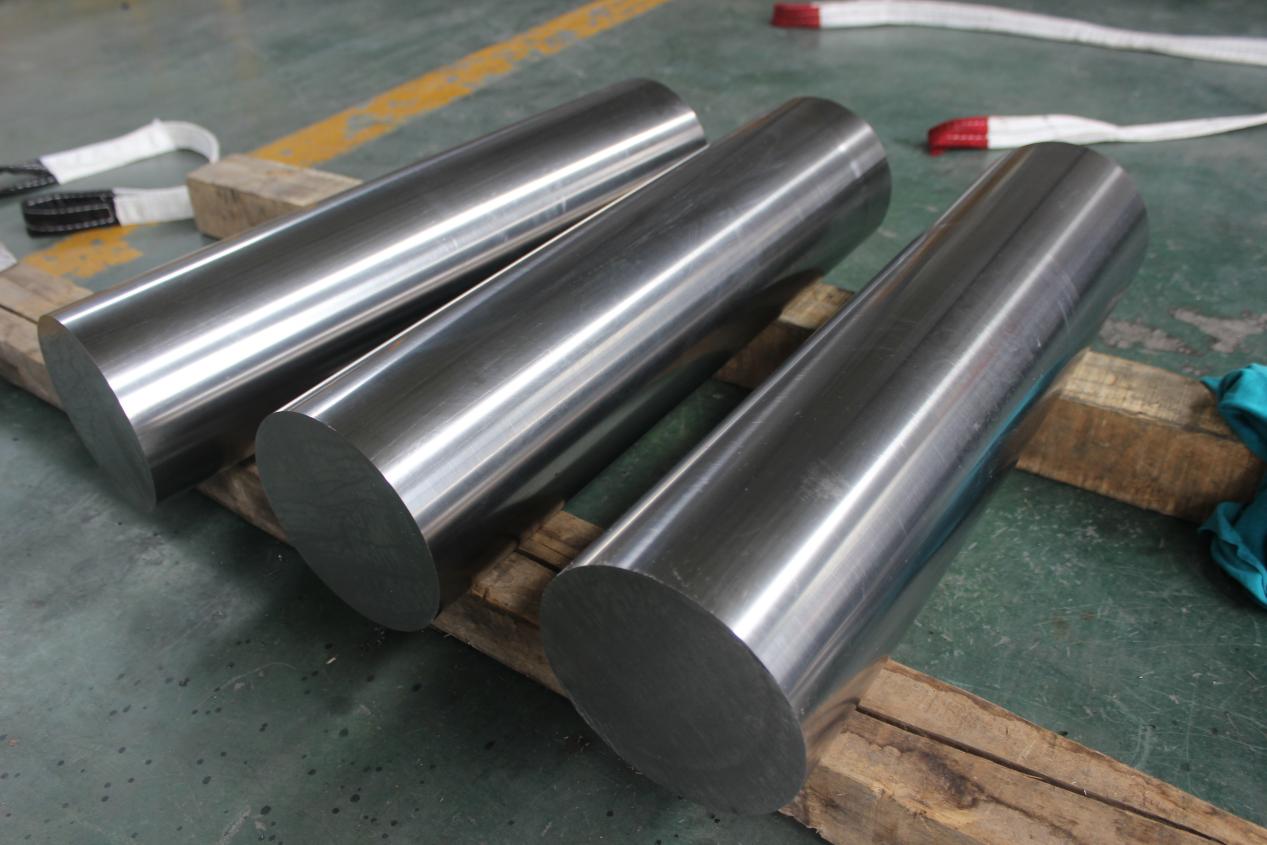

Our Titanium Bar For Sale
