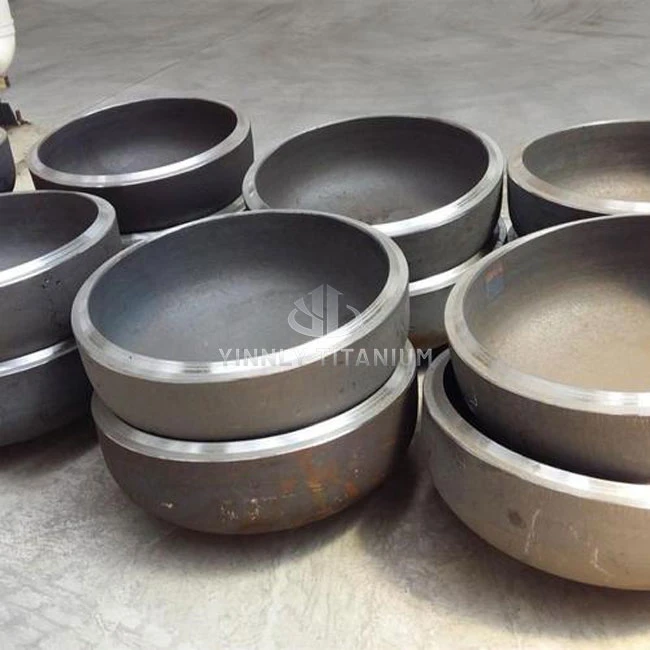

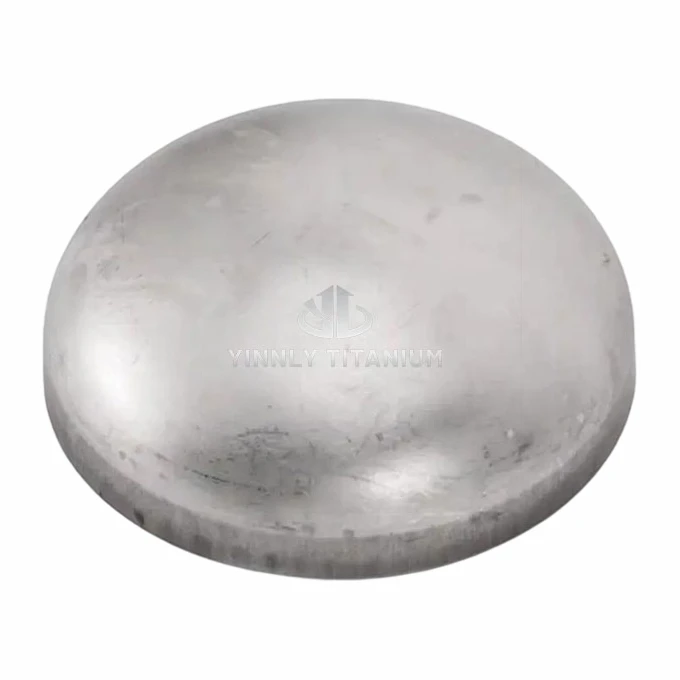

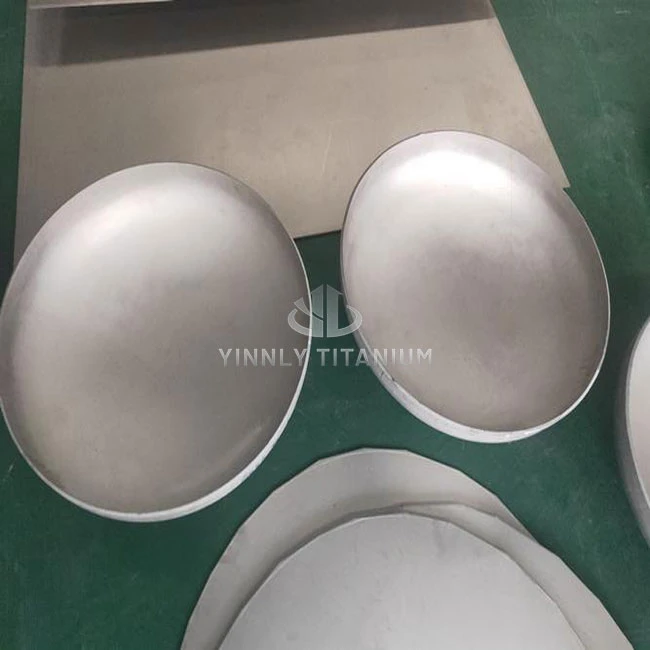

Grade Titanium 5 Pipe Cap

Baoji Yinnly Titanium Co., Ltd. is one of the most reliable manufacturers and suppliers of grade titanium 5 pipe cap in China, featured by high quality customized products. If you're going to wholesale durable grade titanium 5 pipe cap made in China, welcome to get free sample from our factory. For price consultation, contact us.

Ti-6Al-4V is the workhorse of titanium alloys – an α+β alloy that gives you the best all‑around balance of strength, toughness, and corrosion resistance. The chemistry is roughly 90% titanium, 6% aluminum, and 4% vanadium, with very tight limits on impurities like iron, carbon, nitrogen, hydrogen, and oxygen (per ASTM B363). If those impurities creep up, corrosion resistance and weldability can suffer, so reputable suppliers control them strictly.

Typical mechanical properties (room temperature, for forged or stamped caps):

• Yield strength (min): 828 MPa (120 ksi) – some specs call for 880 MPa, but 828 is the common industry minimum for annealed material.
• Tensile strength (min): 895 MPa (130 ksi)
• Elongation: ≥10%
• Hardness: 32–38 HRC
• Elastic modulus: about 110 GPa

It blends the good corrosion resistance and toughness of α‑titanium with the high strength and heat‑treatability of β‑titanium. Titanium Alloy Pipe End Cap stays ductile even at cryogenic temperatures – down to -253 °C (liquid helium) without becoming brittle. On the hot end, it's stable up to roughly 300–400 °C, depending on the environment.

The go‑to global standard for Grade 5 titanium pipe cap is ASTM B363 / ASME SB363 (that's the one covering titanium and titanium alloy forgings – fittings like caps, flanges, reducers, etc.). Domestically in China, you might also see GB/T 13810 for titanium plates and forgings. For dimensional tolerances, most people match ASME B16.9 or GB/T 12459 – the same envelope as steel butt‑weld fittings, so no surprises in the piping layout.

• Welding Grade 5 is trickier than Grade 2 – you need good shielding gas (argon) and clean prep, but it's very doable.
• Don't mix it with carbon steel tools or brushes – iron contamination can cause local corrosion.
• If you don't need the extra strength, Grade 2 is cheaper and easier to weld. But when the pressure or fatigue life demands it, Titanium Gr5 Welded Pipe Cap is worth every penny.
